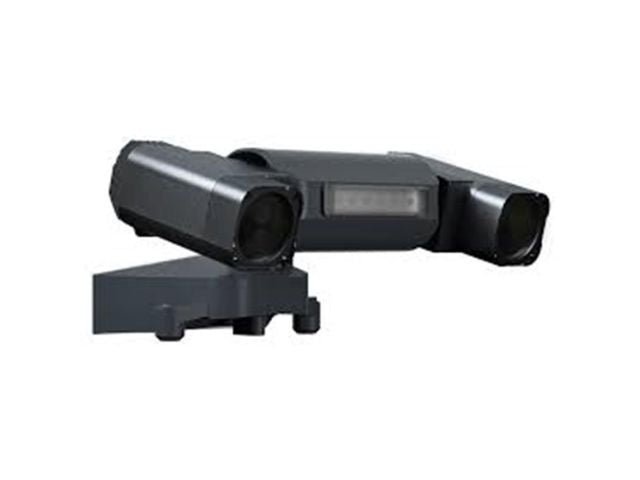

CZI GL10 Gimbal Projector

The GL10 Gimbal Searchlight is the industry's first lightweight gimbal searchlight, designed specifically for the DJI Mavic 3 commercial drone, weighing less than 140g and rated at 20W. The GL10 Gimbal Searchlight has an optical imaging lens structure with a 13° beam angle.

CZI GL10 Gimbal Projector Specifications:

• Weight: 130g ±4
• Dimensions: 107x128x51.5 (L x W x H)
• Total power: 30W
• White LED power: 20W
• Red and blue LED power: 2W
• Supply voltage: 15V
• Luminous flux: 1830 Im ±3
• Working temperature: -20°C ~ +50°C

The GL10 Gimbal Searchlight operates at a preset power limit of 30% before the drone takes off (power can be manually adjusted to 50% or 100%). After takeoff, power can be increased up to 100%.

During operation of the GL10 Gimbal Searchlight, avoid direct contact with the outer casing of the light as it may cause burns due to the high temperature.

Compatibility

• Mavic 3 Enterprise
• Mavic 3 Thermal
