Autel

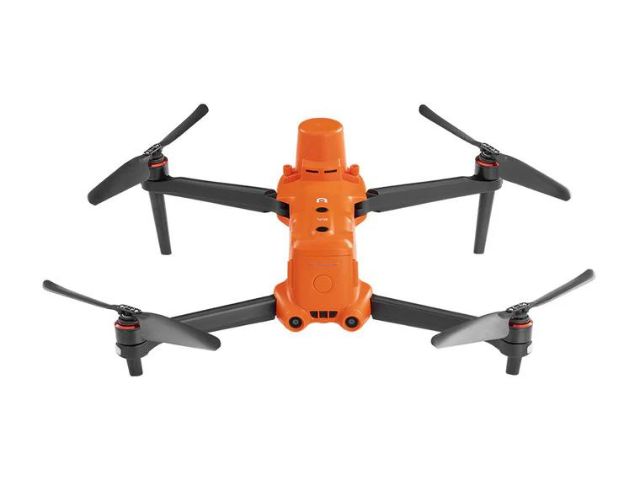

Drone EVO II Dual 640T RTK V3 Thermal Drone

Drone EVO II Dual 640T RTK V3 Thermal Drone

Autel's latest released EVO II Pro Dual 640T RTK V3 package integrates an all-new RTK module for 2023, providing real-time centimeter-level positioning data within three minutes and supporting post-processing kinematics (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, helping to achieve accurate and stable data acquisition in complex operating environments.

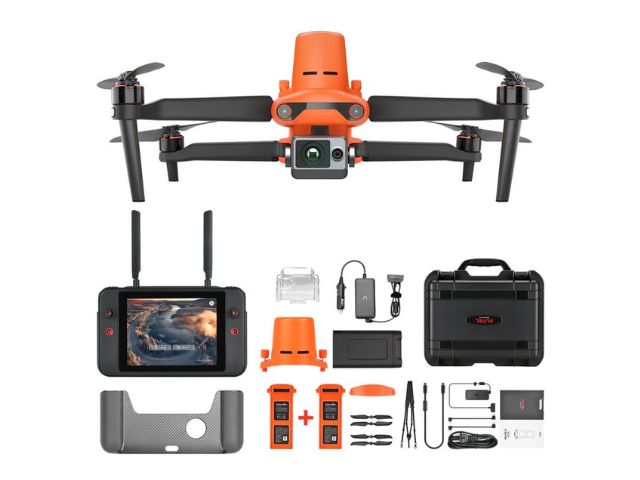

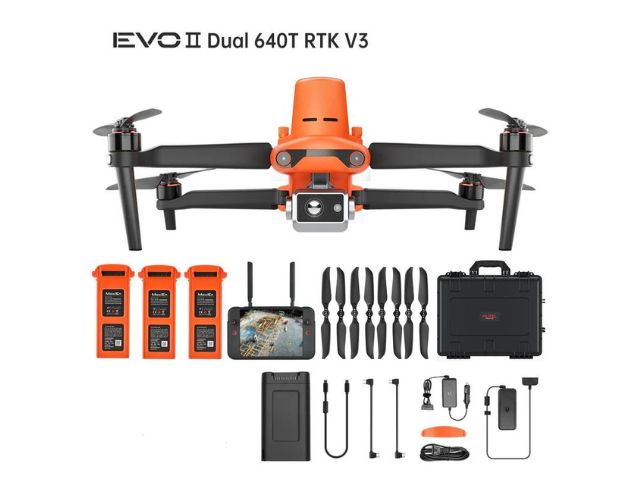

Paquete EVO II Dual 640T RTK V3

Aircraft 1 pcs (Battery, Propeller, Gimbal Cover)
Remote control 1 uds
Spare propellers 2 pairs
Replacement battery 2 uds
Battery charger+Power cable 1 uds
Car charger 1 uds
Multi charger 1 uds
RC charger 1 uds
RC charging cable 1 uds
Replacement Control Lever (Pair) 1 uds
RC Protective Cover 1 uds
RC Codon 1 uds
Extended port cover 1 uds
Protective cover 1 uds
Quick guide 1 uds


Highlights of the EVO II Dual 640T RTKV3 Thermal Drone:

 No PCG required
Supports all NTRIP compatible base stations.
Explorer for mapping
Dual cameras: high-resolution thermal imaging camera and new 0.8" 50-megapixel Sony RYYB sensor.
Multiple color palettes
Autel Skylink 2.0 video transmission 15KM
Autel Smart Controller V3 7.9'' OLED Screen
Live Stream Deck 2 Anywhere
38 minutes of flight
360° obstacle avoidance
Portable and easy to fly



Explorer for mapping

Create rectangular or polygonal missions. It turns non-stop in corners. Supports dual grid mapping for additional angles.

Multi-NTRIP Profile Saving: For repeatable data acquisition missions, it can record the drone's previous shooting positions. All movements of the gimbals, cameras and aircraft will be replicated, thus producing a complete record of the entire mission.

Photo Replication: For repeatable missions, you can record the drone's previous shooting parameters. Gimbal, camera, and motion setups will be replicated, allowing for easy mission duplication.

Multi-Battery Missions – The Explorer app allows the user to create and save multiple NTRIP profiles for different locations, so you don't have to manually enter a new flight plan for each new location.

Dual cameras: accurate temperature measurement

The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all-new 0.8" 50-megapixel Sony RYYB sensor.

High resolution thermal imaging sensor

Equipped with a 640x512 high-resolution thermal imaging camera with a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making the details of thermal images clearer and more discernible than competitors with similar resolution and hardware.

Accurate temperature measurement

The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2 to 20 meters. Taking advantage of the infrared temperature measurement compensation algorithm, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

10 multiple temperature measurement modes

White hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron arch | Enough | Arctic | Scorching | Gradation | Heat detection

Picture in picture mode

The thermal drone can carry out dual situation observations with this image in image mode, it can measure the core temperature in the image or measure the temperature of the pointed point as needed, even the regional temperature (the maximum and minimum temperature in the area) . and you can also set the temperature alarm.

Powerful Infrared Thermal Analysis Tool: IRPC TOOL

This free temperature measurement analysis tool is developed specifically for the 640T and allows users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

Zoom in to see details

16x Zoom to See Details: EVO II Pro V3 supports 4x lossless zoom and 16x digital zoom. Get clear information from further away without suspicion.

Skylink 2.0 video streaming

The EVO II PRO V3 is updated with Autel's new skylink 2.0 video transmission technology.

15KM QHD HD video transmission Critical details with QHD video within 1km

2.4G/5.8G Fewer signal interruptions and improved anti-interference capabilities.

360° Obstacle Avoidance
Equipped with 19 groups of sensors, including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors allow creating three-dimensional maps and planning routes in real time.

Safe and durable

Quick Deployment: The EVO II Pro RTK V3 takes 45 seconds to launch without problems.

Maximum wind resistance of 27 mph, maximum flight time of 38 minutes

No forced updates: EVO II Pro RTK V3 does not need to be updated
hardware version or application to take off.

Smart Controller V3

The 7.9-inch, 2000-nit high-brightness display is clearly visible even in direct sunlight. The custom Android system allows for additional flexibility with third-party apps and an IP43 rating ensures all-weather performance.

Streaming with Live Deck 2

EVO II Pro RTK V3 supports real-time multi-port HDMI output to meet projection monitoring and live streaming requirements with Live Deck 2.

EVO 2 Dual 640T RTK V3 Specifications

Weight (with propellers, battery and RTK module) 1250g ± 0.5g (EVO II Dual 640T RTK V3)
Maximum takeoff weight
Maximum takeoff weight 4.41 lbs+ (1999 g)

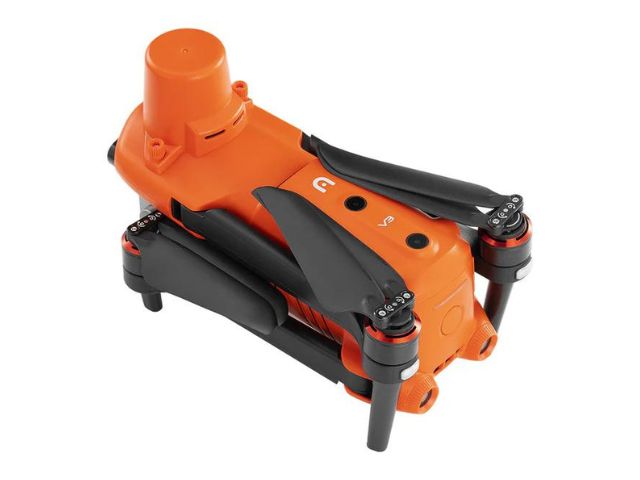

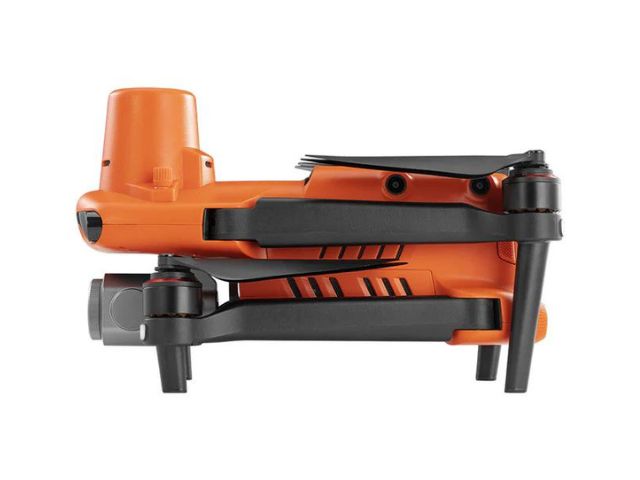

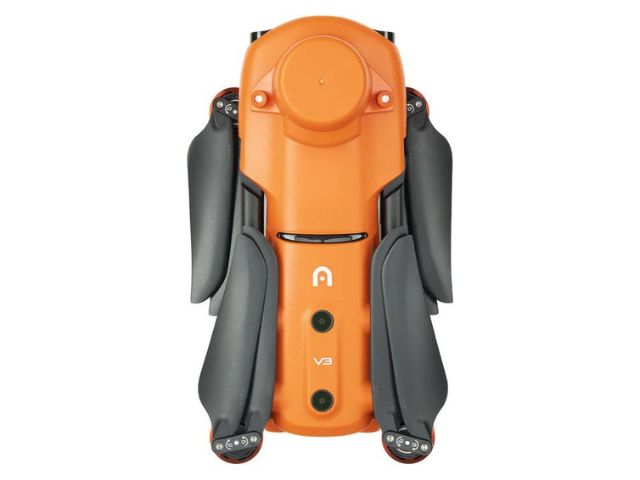

Size (length x width x height) Folded 230*130*143mm; 9.1*5.1*5.6 inches
Size (length x width x height) Unfolded 457*558*143mm; 18*22*5.6 inches
Wheelbase 397 mm
Maximum service ceiling height 7000 m
Maximum climb speed 8 m/s
Maximum descent speed 4 m/s
Maximum horizontal flight speed 20 m/s
Maximum flight distance (no wind) 21 km
Maximum angular velocity  120°/s
Maximum tilt angle 33°
Maximum flight time 36 min
Maximum hover time (no wind) 32 min
Operating temperature range 14 °F a 104 °F (-10 ℃ ~ 40 ℃)
Maximum wind resistance 43 km/h, 12 m/s (takeoff and landing)
Operating frequency
  • 902-928MHz (solo FCC)
  • 2.400-2.4835GHz
  • 5.725-5.850GHz
  • Transmission power (EIRP) 900M
  • FCC/ISED:≤31dBm
  • 2.4G
  • FCC/ISED:≤32dBm
  • SRRC/CE/MIC/RCM: ≤20dBm
  • 5,8G
  • FCC/ISED/SRRC/MIC:≤33dBm
  • CE/RCM: ≤14dBm
Scrolling accuracy when RTK is enabled and working normally
  • Vertical: ±0,1m; Horizontal: ±0,1m
  • Vertical: ±0.1m (when visual positioning works normally);
  • ±0.5 m (when GNSS works normally)
  • Horizontal: ±0.3m (when visual positioning works normally);
  • ±1.5 m (when GNSS works normally)
Image position compensation Offset the position of the camera center relative to the phase center of the A-RTK antenna in the air, under the body axis system: (-2.63, 0.31, 83.5) mm, and the EXIF ​​coordinates of the photograph. The positive XYZ axis of the body axis system points toward the front, right, and bottom of the aircraft, respectively.
Internal storage 8GB
SD storage supports 256 GB (UHS-3 or Class 10)




GNSS

Single Frequency High Sensitivity GPS GNSS
  •  + BeiDou + Galileo (Asia)
  • GPS+GLONASS+Galileo(Other areas)
Used multi-frequency high-precision multi-system GNSS RTK frequency points:
  • GPS: L1/L2;
  • GLONASS: L1/L2;
  • BeiDou: B1/B2;
  • Galileo:E1/E5
  • First positioning time: <50s
  • Positioning accuracy:
  • vertical 1,5 cm + 1 ppm (RMS);
  • Horizontal 1 cm + 1 ppm (RMS)
  • 1 ppm means that the error increases by 1 mm for every 1 km the plane advances



Cardan

Gimbal stabilization 3 axes
Mechanical range Tilt
  • -135° a +45°
  • Panoramic: -100° to +100°
Controllable rotation range Tilt
  • -90° a +30°
  • Panoramic: -90° to +90°
Maximum control speed (tilt) 300°/s
Angular vibration range ±0,005°


Remote control and image transmission

Operating frequency
  • 902-928MHz (solo FCC)
  • 2.400-2.4835GHz
  • 5.725-5.850GHz
Transmission power (EIRP) FCC  ≤33dBm
THERE IS ≤20dBm@2.4G,≤14dBm@5.8G
SRRC ≤20dBm@2.4G,≤33dBm@5.8G/5.7G
Maximum transmission distance (obstacle-free, interference-free) FCC 9.3 miles (15 km)
THERE IS 5 miles (8 km)
Display screen 2048x1536 60 fps
Battery 5800mAh
Operating time
  • ~3 hours (maximum brightness)
  • ~4.5 hours (50% brightness)
Loading time 120 minutes
Internal storage ROM 128 GB



Detection system

Type of detection system Omnidirectional detection system
Forwards
  • 0,5-18 m
  • Effective detection speed: <12m/s
  • Viewing angle: Horizontal: 60°, Vertical: 80°
Backward
  • Accurate measuring range: 0.5-16m
  • Effective detection speed: <12m/s
  • Viewing angle: Horizontal: 60°, Vertical: 80°
Up
  • Accurate measurement range: 0.5-10m
  • Effective detection speed: <5m/s
  • Viewing angle: Horizontal: 65°, Vertical: 50°
Down
  • Accurate measurement range: 0.5-10m
  • Effective detection speed: <5m/s
  • Viewing angle: horizontal: 100°, vertical: 80°
Left and right
  • Accurate measurement range: 0.5-10m
  • Effective detection speed: <5m/s
  • Viewing angle: horizontal: 65°, vertical: 50°
Operating environment

forward, backward and sideways:

  • Surface with clear pattern and adequate lighting: lux > 15
  • Up:
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)
    Down:
    Surface with clear pattern and adequate lighting (lux > 15)
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)



EVO II Dual 640T RTK thermal camera

Sensor  Uncooled VOx Microbolometer
Spring FOV H33°V26°
Focal distance 13 mm
Zoom 1-16x
Pixel size 12 μm
Wavelength range 8 - 14 μm
Temperature range
  • High gain mode: -20° to +150°
  • Low Gain Mode: 0° to +550°
Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@Ambient temperature -20℃~60℃
Accurate temperature
measuring distance
2-20 meters
Video resolution 640x512@25fps
Video format MOV/MP4 (compatible con H.264/H.265)
Camera resolution Infrared mode: 640*512
Picture in Picture Mode 1920*1080, 1280*720
Photography mode Single shot
Burst shooting 3/5 frames, 3 is the default
Time lapse  JPG: 2 s/5 s/7 s/10 s/20 s/30 s/60 s
Photo format JPG (with irg file)



Cámara visual EVO II Dual 640T RTK V3

1/1.28"(0.8") CMOS Sensor 50 million effective pixels
Lens field of view
  • 85°
  • Equivalent focal length in 35mm format: 23mm
  • Aperture: f/1.9
  • Focus range: 0.5m to infinity (with autofocus)
ISO range
  • Video: 100-64000
  • Photo by: 100-6400
Shutter speed Photo mode
  • Photo mode: 1/8000 ~ 8s
  • Others: 1/8000 ~ 1/frame rate
Zoom 1-16x (up to 4x lossless zoom)
Photography mode Single Shot/Burst Shot/AEB/Time Lapse/HDR Imaging
Maximum photo size
  • 8192*6144(4:3)
  • 4096*3072 (4:3)
  • 3840x2160 (16:9)
Image format JPG (default) / DNG / JPG+DNG
Video format MOV/MP4
Video resolution
  • 3840x2160P60/P50/P48/P30/P25/P24
  • 2720x1528P60/P50/P48/P30/P25/P24
  • 1920x1080P60/P50/P48/P30/P25/P24
Maximum bit rate 80 Mbps
Supported file system  FAT32/exFAT


Battery

Ability 7100 mAh
Voltage 11.55 V
Battery Type LiPo 3S
Energy 82 Wh
Weight 365 grams
Charging temperature range from 5 ℃ to 45 ℃
Storage temperature and humidity -10~30℃,65±20%RH
Recommended storage temperature 22-28 ℃
Maximum charging power  93W
Loading time 90 minutes



Charger

Prohibited 100-240 V, 50/60 Hz, 1,5 A
Exit 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage 13.2 ± 0.1 V
Nominal power  66W


Multi charger

Voltage 13.2 V
Charging temperature range  from 5 ℃ to 45 ℃
