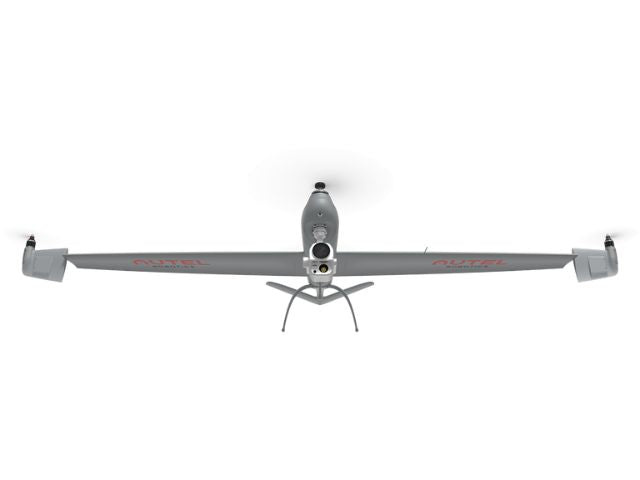

Dron Dragonfish

The Dragonfish's unique tiltrotor design simplifies operation and maximizes performance and efficiency. With no complicated moving parts, Dragonfish is modular, waterproof, smart and reliable. The Dragonfish is mission-ready out of the box and includes powerful AI tracking capabilities and a multitude of modular payload options. An endurance of up to 150 minutes (including payload) further increases the Dragonfish's robust mission capabilities and puts it significantly ahead of the competition.

The Dragonfish series includes three models: Dragon Lite, Dragonfish Standard and Dragonfish Pro. With a flight time of 75 minutes, 120 minutes and 180 minutes respectively with payload, each model can greatly improve work efficiency.

Built Tough: The aircraft's composite outer shell and carbon fiber core give the aircraft a Level 6 wind resistance and IP43 weather resistance rating to handle complex environments with ease.

Backup Modules: Dragonfish's battery, barometer, positioning system, compass and IMU have backup modules to ensure flight safety.

Autel Robotics' superior flight control platform ensures stability and reliability with every flight.

Automatic Transition: The Dragonfish will automatically transition to multirotor mode if adverse conditions cause fixed-wing flight to stop or become unsustainable. The Dragonfish can automatically choose which mode to fly in for the best performance.

Vigilant AI: Vigilant AI continually self-checks the system to prevent failures before they happen.

High-quality sensors: The integrated air speed sensor monitors the environment in real time, even when hit by snow or ice.

Using Autel's advanced flight control technology and artificial intelligence, the Dragonfish can tackle even the most complex operations.

RTK Accuracy

Map with confidence with Dragonfish's two RTK (real-time kinetic) modules, which allow the aircraft to provide centimeter-precise location data when combined with a GNSS base station. Dual units back up each other's data for added peace of mind, while improving image metadata quality and increasing flight accuracy and safety.

Interchangeable payload system

Tackle any operation with a variety of payload options that can be easily swapped to meet mission needs. Dragonfish payloads are designed to be interchangeable between aircraft classes to maximize value and enhance system mission capability.

DG-T3: For Dragonfish Lite/Standard/Pro 4K 20x Optical Zoom. 12 megapixel wide angle. High resolution infrared 640x512. 3-axis stabilized gimbal system.

DG-T3H: For Dragonfish Lite/Standard/Pro. 12 megapixel wide angle. High resolution infrared 1280x1024. Laser distance measuring radar. 3-axis stabilized loading system.

DG-Z2: For Dragonfish Lite/Standard/Pro. 4K 20x optical zoom. 12 megapixel wide angle. 3-axis stabilized gimbal system.

DG-L20T: For Dragonfish Standard/Pro 4K 20x Optical Zoom. 12 megapixel wide angle. 640x512 high resolution infrared. Laser distance measuring radar. 3-axis stabilized gimbal system.

DG-L50T: For Dragonfish Pro. 4K 50x optical zoom. 12 megapixel wide angle. 1280x1024. High resolution infrared. Laser distance measuring radar. 3-axis stabilized gimbal system.

With an ultra-bright 1000 nit touchscreen, the Autel Ground Control Station is twice as bright as the average smartphone, making the 9.7-inch screen easy to see in direct sunlight.

·         Samsung EXYNOS: Eight-core processor.

·         9.7 inches: TFT-LCD capacitive touch screen.

·         18.6 miles: Image transmission distance.

·         2048x1536: Ultra HD resolution.

·         4.5 hours: Battery life.

·         256G: Internal storage.

Incredibly powerful yet easy to use, Autel Voyager is the one-stop solution for every mission. Designed specifically for Dragonfish, the software provides advanced mission planning, intelligent tracking, flight history tracking and other autonomous functions.

Mission Planning: Waypoint missions, polygonal missions and rectangular missions can be planned off-site before the mission and started with a single click to begin autonomous flight. The pilot can regain control at any time during the mission to perform emergency maneuvers or plan a custom flight path.

Tap to fly: Select a target on the camera and the Dragon Fish will automatically fly to the selected location and orbit the subject.

Mission Management – ​​Monitor past missions and assign flights.

Quick Mission: Set points of interest on the flight map during any part of the mission and the Dragonfish will automatically deviate from its original route plan to suit the pilot's needs.

Compact and portable

With its innovative quick-release design and quick self-check, the Dragonfish can be airborne and mission-ready in 5 minutes.

The Dragonfish can be easily disassembled by a single person and fits in the trunk of any medium-sized car. The entire system can be assembled without tools and ready to fly in 5 minutes.

Quick release blade design makes assembly simple and convenient.

Security mechanisms

GPS Loss Protection

If the GPS signal is lost, the aircraft will automatically land at your current location.

Low battery protection

When the aircraft's battery reaches the set threshold, the pilot will receive a low battery warning and the aircraft will begin to return home automatically. Once the battery level has reached 15%, the pilot will receive a critical power warning and the aircraft will automatically land at the location.

Lost signal protection

If communication between the aircraft and the ground station is interrupted, the aircraft will use its GPS signal to return home automatically.

Why choose Autel Dragonfish?

Less Training Needed: No need for launchers, slingshots, launches, parachutes.

Easy to fly: Take off anywhere, anytime.

Easy to carry: Dragonfish fits in the back of any car/SUV.

Maintenance-free: Unlike helicopters or other aerial solutions, there is no need for costly maintenance activities…

Low noise: The electric motor is much quieter than a fuel engine, making it perfect for reconnaissance.

Tilt-Rotor Design: Switch from quadcopter mode to fixed-wing flight with the touch of a button.
