Boran II Drone - Pack Táctico Pro Platinum
Boran II Drone - Pack Táctico Pro Platinum

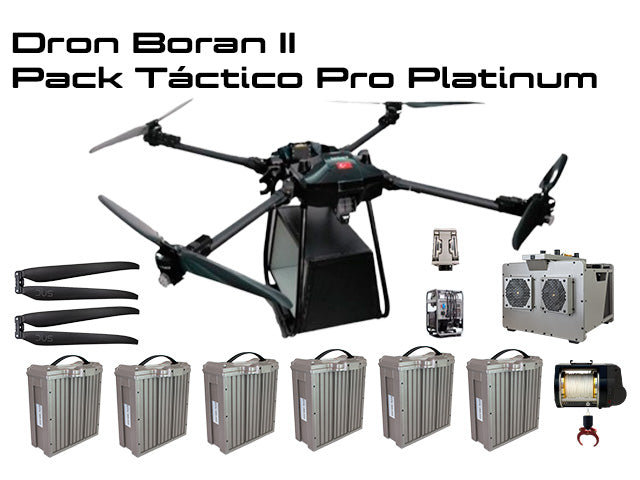

Components of the Pro Platinum Tactical Pack - Boran II Drone
Batteries from 30Ah to 14S | 5 uds |
9000W charging station | 1 uds |
Spare Propeller Sets | 2 uds |
Winch system 50 kilos, for 50 meters | 1 uds |
12000W Integrated Gasoline Generator | 1 uds |
Dual charger with cooling system (connected to generator) | 1 uds |
Immune Jammer Flight Controller (50km Immune Anti Jammer Device) | 1 uds |
Technical specifications of the Boran II Drone:
High load capacity | Maximum load 50 kg |
Long control distance | Dual remote control with 10 km control range |
High speed and high durability | Operating temperature 15ºC to 50ºC. Resistance at 12 m/s |
Flight speed | 30 m/s |
Fully autonomous flight | Fully autonomous takeoff and landing and route following. |
Ergonomic design | Light and foldable. 60 liter composite casing. |
Gimbal camera | High resolution dual mode |
Advanced Security | IP55 protection |
Dimension | 745x472x385 mm (largo x ancho x alto) |
Inner space | 573x416x305 mm (largo x ancho x alto) |
Material | aluminum composite |
Weighing function | Supported |
Weight | Approx. 4.5 kilograms |
Load capacity | 0-40 kilos |
Boran II Drone Camera Technical Specifications:
1080p visible light + 640 thermal imaging camera |
Multiple thermal imaging pseudocolor modes. |
Multiple image in image mode |
170m/s low latency RTSP stream output |
Supports dual output of network and HDMI interfaces |
Admit zoom digital de 9x |
Network and UART control |
Light capsule, 200 |
Type: NOW MK32E doble |
Application: Ground station |
Operating frequency: 2.400-2-483GHz |
PIRE: 2.400-2.4835GHz |
Operating temperature:
|
Loading environment: -20º to 50ºC |
Temperature: 5º to 40ºC |
Charging method: Use a USB-C fast charging charger with a maximum power of no less than 30W (maximum voltage 20V). SIYI portable charger is recommended. |
Charging method: 3.5 hours with built-in battery. |
GNSS: GPS+Galileo+BeiDou |
Screen: 7-inch touch LCD screen, resolution 1920*1200, brightness 1200 nits |
Dual operator mode: Supported |
Technical specifications of the winch system (optional):
Dimension | 252x195x193 mm(largo x ancho x alto) |
Body weight | 2.5 kg (without group or partner) |
Group weight | 1.9 kilograms |
Weight of the couple | 0.6 kilograms |
Touchdown Throw | Feature supported |
Payload capacity | 40 kilograms |
Cable length | 20 meters |
Maximum retraction speed | 0,8 m/s |
Operating temperature |
-20º to 45ºC |
Ingress Protection Rating | IP55 |
Weighing function | Supported |
Protection against cable cuts | Supported |
Turn control function | Supported |
Manual Operation | Supported |
Automatic operation | Supported |
Deceleration protection | Supported |
